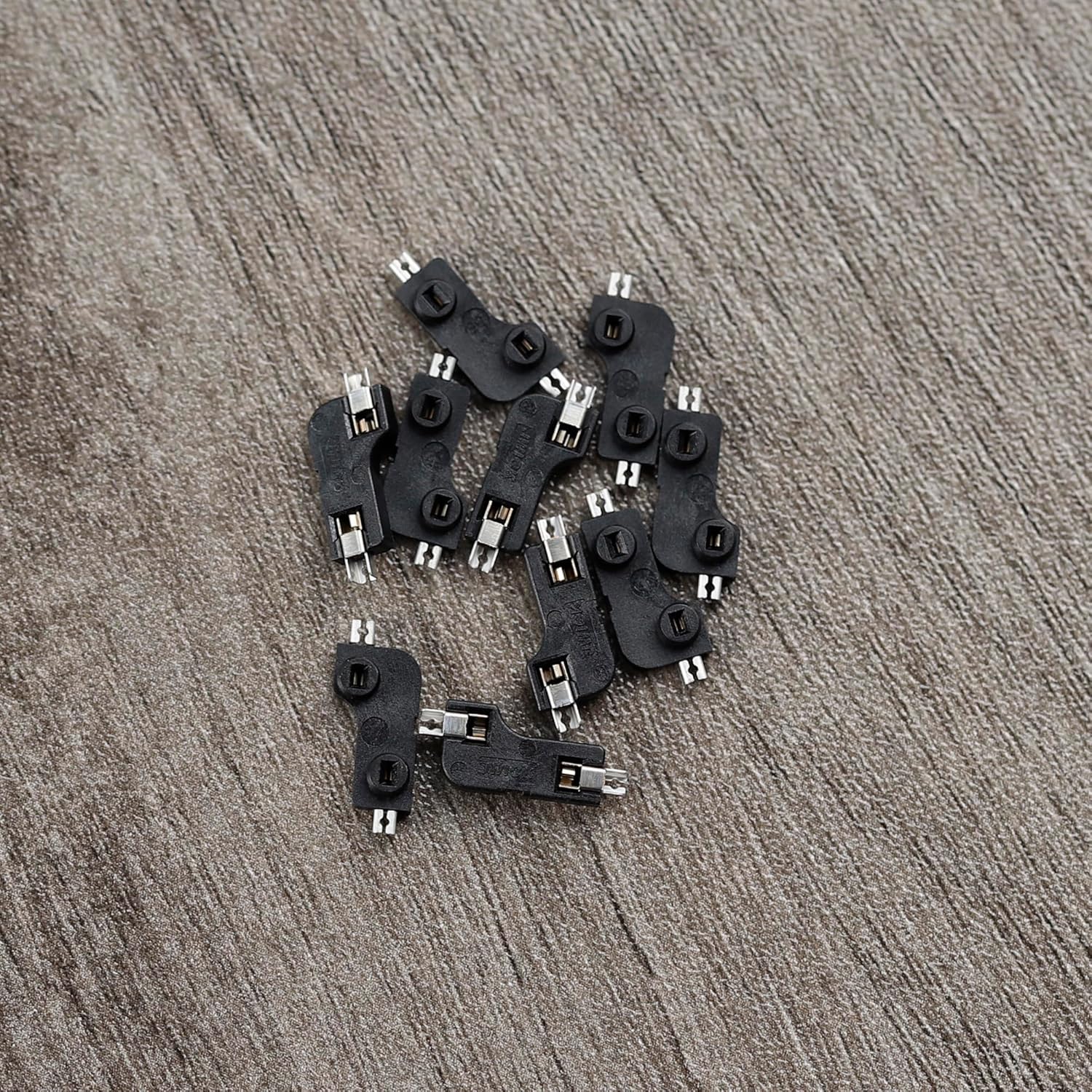

JWK SW-5 Hot-swappable PCB Socket V2 - Sip Socket for Hot Plug Connections (2000)

Package Included: 50/100/2000 pcs option The JWK SW-5 V2 Hot-Swappable PCB Socket is specially designed for mechanical keyboard DIY enthusiasts seeking cost-effectiveness, serving as an ideal alternative to brands like Kailh and Gateron. The compact SIP package design not only saves circuit board space but also enhances overall vibration resistance, making it suitable for most compact keyboard layouts such as 60% and 75% sizes. Solderless operation allows for quick switch installation and removal—whether you want to switch from Blue switches to Red switches for a different feel or replace worn-out switches, the process is effortless, significantly lowering the DIY barrier. The combination of high-elasticity metal contacts and high-temperature resistant bases supports over 10,000 plug-in cycles, balancing convenience and durability. Detail: Mainly applied on computer keyboards,cash registers equipment and Man-Machine interface. Rating voltage: 12V AC/DC (maximum) and 2V AC (minimum) Rating current: 10mA AC/DC (maximum) and 10μA DC (minimum) Contact resistance: 200mΩ (maximum) Insulation resistance: 100mΩ (minimum) (100V DC) Withstand Voltage: AC100V(50-60Hz) Motion Force: 3.0kgf max Operating Life: 100 Cycles (can replace switches 100 times)

• Delivers reliable hot-swappable performance comparable to Kailh and Gateron counterparts, ideal for DIY users seeking practical value without overspending
• Optimized conductive contact structure boosts fitting stability with PCB boards, minimizing poor contact risks. Works with mainstream mechanical switches (e.g., MX switches, optical switches) for wide compatibility
• Single In-line Package (SIP) saves PCB space, fits miniaturized device layouts, and enhances vibration resistance for extended service life
• No professional soldering tools needed—easily replace switches to customize keyboard feel (e.g., linear vs. tactile switches), even for beginners
• High-elasticity metal contacts and high-temperature resistant insulating bases support over 10,000 plug-in cycles, meeting long-term frequent use needs
• The current socket has been upgraded to a new version, and the upper one is a closed metal ring compared to the old version
