LRF100H Laser Ranging Module, LiDAR Range Finder Sensor Single-Point Ranging Module

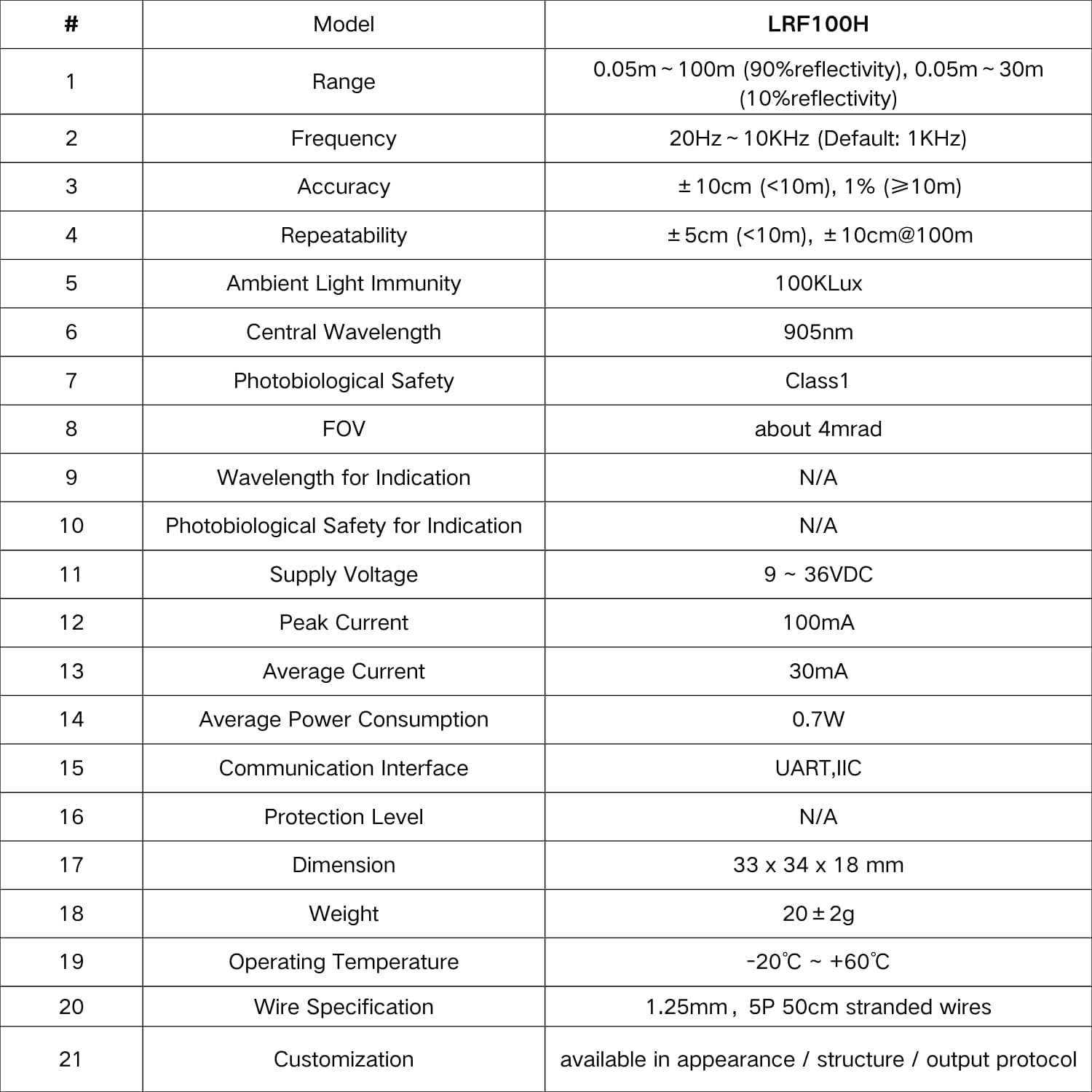

Introducing the LRF100H Laser Ranging Module, a high-precision LiDAR sensor designed for accurate distance measurement applications. This compact module offers impressive measurement capabilities with a range of 0.16 to 328 feet at 90% reflectivity, and up to 98 feet at 10% reflectivity. Operating at a frequency range of 20Hz to 10KHz, it delivers exceptional accuracy of ±3.9 inches for distances under 33 feet, and 1% accuracy for greater distances. The module features a 905nm central wavelength laser and maintains Class 1 photobiological safety standards. With its compact dimensions of 1.3 x 1.34 x 0.71 inches and lightweight design at just 20±2g, it's perfect for integration into various systems. The sensor operates reliably in temperatures from -4°F to 140°F and requires 9-36VDC power supply with minimal power consumption of 0.7W. Its UART/IIC communication interface enables seamless data transfer, while the 100KLux ambient light immunity ensures reliable performance in various lighting conditions. The module comes with 1.25mm, 5P 19.7-inch stranded wires for easy installation and can be customized in appearance, structure, and output protocol to meet specific requirements.

• MEASUREMENT RANGE: Capable of measuring distances from 0.05m to 100m with 90% target reflectivity, and up to 30m with 10% reflectivity
• PRECISION PERFORMANCE: Offers ±10cm accuracy for distances under 10m and 1% accuracy for distances over 10m, with excellent repeatability
• TECHNICAL SPECS: Features 905nm central wavelength, 20Hz-10KHz frequency range, and 4mrad field of view for precise measurements
• POWER EFFICIENCY: Operates on 9-36VDC with low power consumption of 0.7W and average current draw of 30mA
• COMPACT DESIGN: Measures just 33 x 34 x 18mm and weighs 20g, with operating temperature range of -20°C to +60°C
